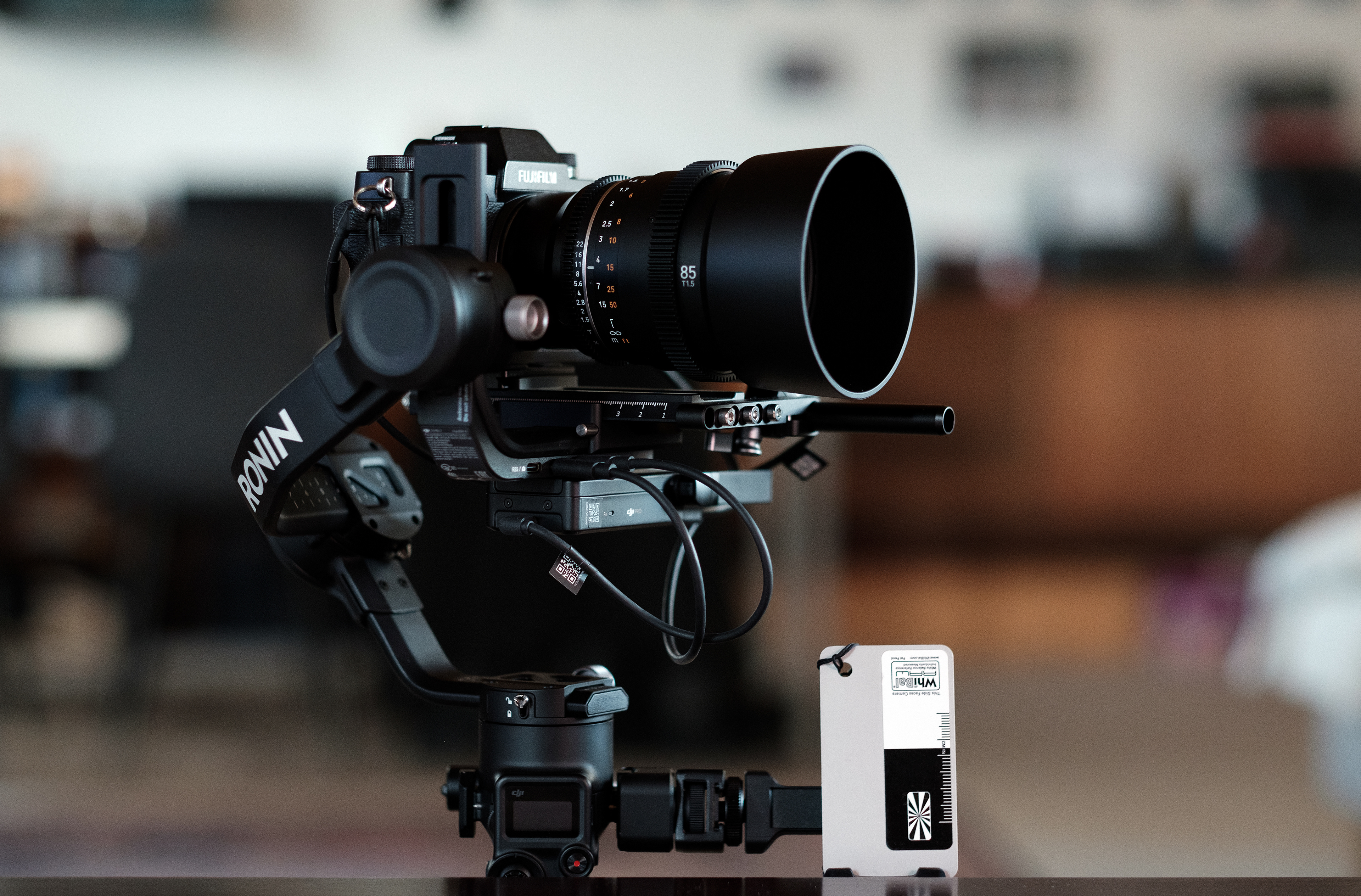

RONIN RSC2 PRO COMBO & FUJI X-T3
1) Connect X-T3 HDMI out to HDMI in of RavenEye (Cable 1)
2) Connect Fuji RSS shutter Cable* to RavenEye RSS port (Cable 2)
3) Connect USB-C port of RavenEye to RIGHT USB-C port of RSC2
it's important to use the most to RIGHT port. (Cable 3)
4) Connect USB-C port of Fuji X-T3 to the LEFT USB-C port of RSC2
it's important to use this most to LEFT RSS port. (Cable 4)
5) Connect USB-C port of (if any) Focus Motor to the MIDDLE
USB-C port of RSC2 (Cable 5)
Notes
With Ronin app v1.4.10 my present Cable settings can
control XT-3, RSC2 and RavenEye at the same time
from both Smartphone/tablet and Ronin RSC2.
2) Connect Fuji RSS shutter Cable* to RavenEye RSS port (Cable 2)
3) Connect USB-C port of RavenEye to RIGHT USB-C port of RSC2
it's important to use the most to RIGHT port. (Cable 3)
4) Connect USB-C port of Fuji X-T3 to the LEFT USB-C port of RSC2
it's important to use this most to LEFT RSS port. (Cable 4)
5) Connect USB-C port of (if any) Focus Motor to the MIDDLE
USB-C port of RSC2 (Cable 5)
Notes
With Ronin app v1.4.10 my present Cable settings can
control XT-3, RSC2 and RavenEye at the same time
from both Smartphone/tablet and Ronin RSC2.
